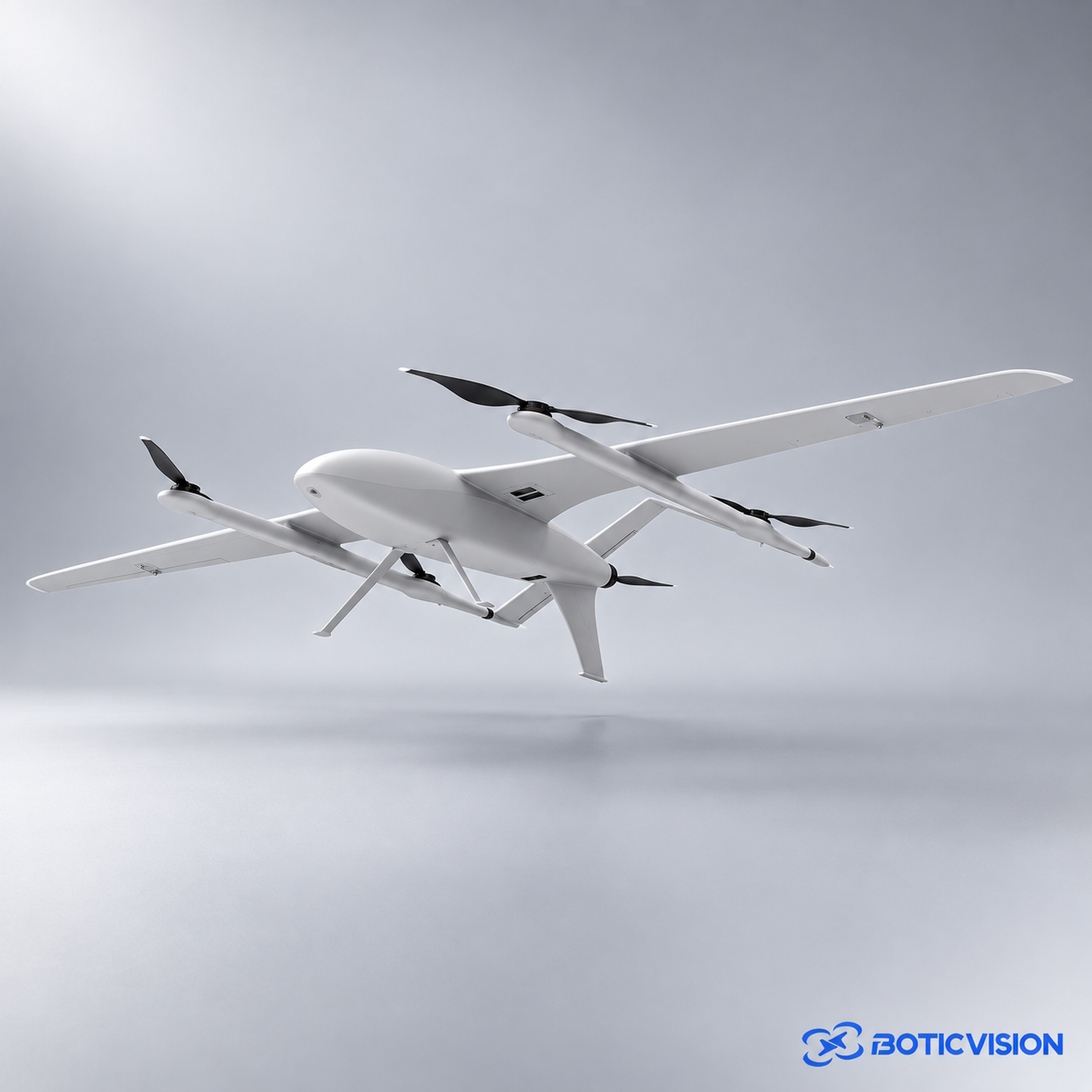

VT30 Hybrid VTOL Fixed-Wing

Product Overview

The VT30 is a hybrid VTOL fixed-wing UAV featuring aerospace-grade carbon fiber construction and high-aspect-ratio three-segment wing design for maximum efficiency and payload capacity. With a 4000mm wheelbase and 30kg maximum takeoff weight, this advanced platform delivers 10kg payload capacity with flexible endurance options: 360 minutes with 5kg payload or 120 minutes at maximum 10kg load. The hybrid-electric propulsion system combines the benefits of electric efficiency with extended range capability, while the full carbon fiber body provides exceptional strength-to-weight ratio. Maximum speed of 130 km/h, climb rate of 4 m/s, and descent rate of 5 m/s ensure efficient mission execution. The 4500m service ceiling and Level 6 wind resistance accommodate diverse operational environments, while operating temperature range from -20°C to 45°C supports operations in varied climate conditions. Manual and fully autonomous route flight modes provide operational flexibility. The compact storage design enables practical transport despite the platform's substantial wingspan. The VT30 excels in surveying and mapping operations requiring extended endurance and substantial sensor payload, long-range inspection missions along infrastructure corridors, emergency response operations demanding rapid deployment with comprehensive sensor coverage, and cargo delivery applications requiring moderate payload capacity over extended distances. Its combination of carbon fiber construction, hybrid propulsion, and high payload capacity makes it the optimal solution for professional operations demanding maximum performance and versatility.
